Industrial Ribbon Mixer

Name: Industrial Ribbon Mixer
Brand: AAS PROCESS EQUIPMENTS PVT LTD.
Price: 400000.0 INR
Availability: InStock

Price 400000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Industrial Ribbon Mixer Specification

Orientation
Horizontal

Frequency
50 Hz

Noise Level
Low

Application
Powder Mixing, Food, Chemicals, Pharmaceuticals

Motor Power
10 HP

Mixing Speed
35 RPM

Drive Type
Gearbox Drive

Voltage
415 V

Blade Type
Double Helical Ribbon

Surface Finish
Powder Coated

Features
Homogeneous Mixing, Easy Cleaning, Low Power Consumption

Type
Industrial Ribbon Mixer

Material
Mild Steel (MS)

Capacity
500 kg per batch

Computerized
No

Automatic Grade
Semi-Automatic

Cooling System
Not Included

Power(W)
7.5 kW

Shape of Tank
U-shaped

Loading Capacity
500 kg

Mixer Type
Horizontal Ribbon Mixer

Size
Standard

Width
800 mm

Dimension (L*W*H)
2200 mm x 800 mm x 1200 mm

Weight (kg)
850 kg

Color
Grey

Product Contact Parts
Mild Steel / SS304 (on request)

Seal Type
Double Lip Seal

Design Standard
Industrial Grade

Cleaning Access
Side Access Door

Lubrication
Manual Grease Points

Batch Cycle
Single

Operating Temperature
Ambient

Main Shaft Material
EN8 Steel

Installation
Indoor

Discharge Method
Bottom Discharge with Manual Valve

Control Panel
Standard On/Off Switch

Electrical Connection
3 Phase

Safety Features
Emergency Stop, Overload Protection

Liner Material
SS 304 (optional)

Mobility
Fixed

Max. Mixing Time
10-15 minutes per batch

Industrial Ribbon Mixer Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
4 Units Per Month

Delivery Time
15 Days

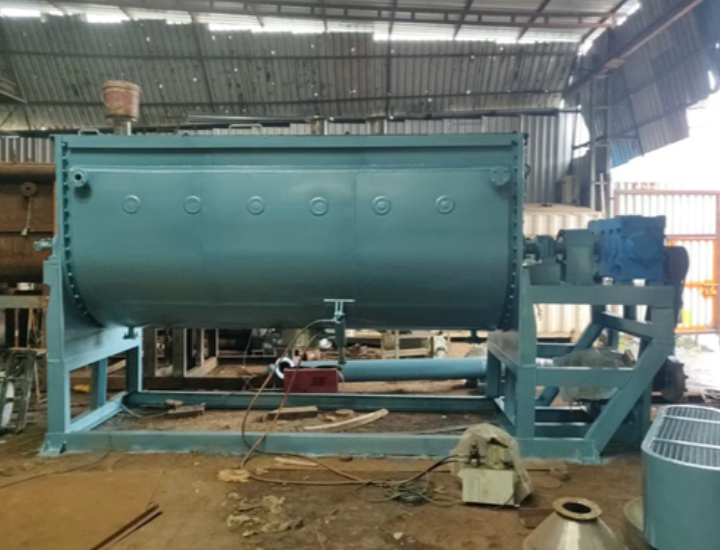

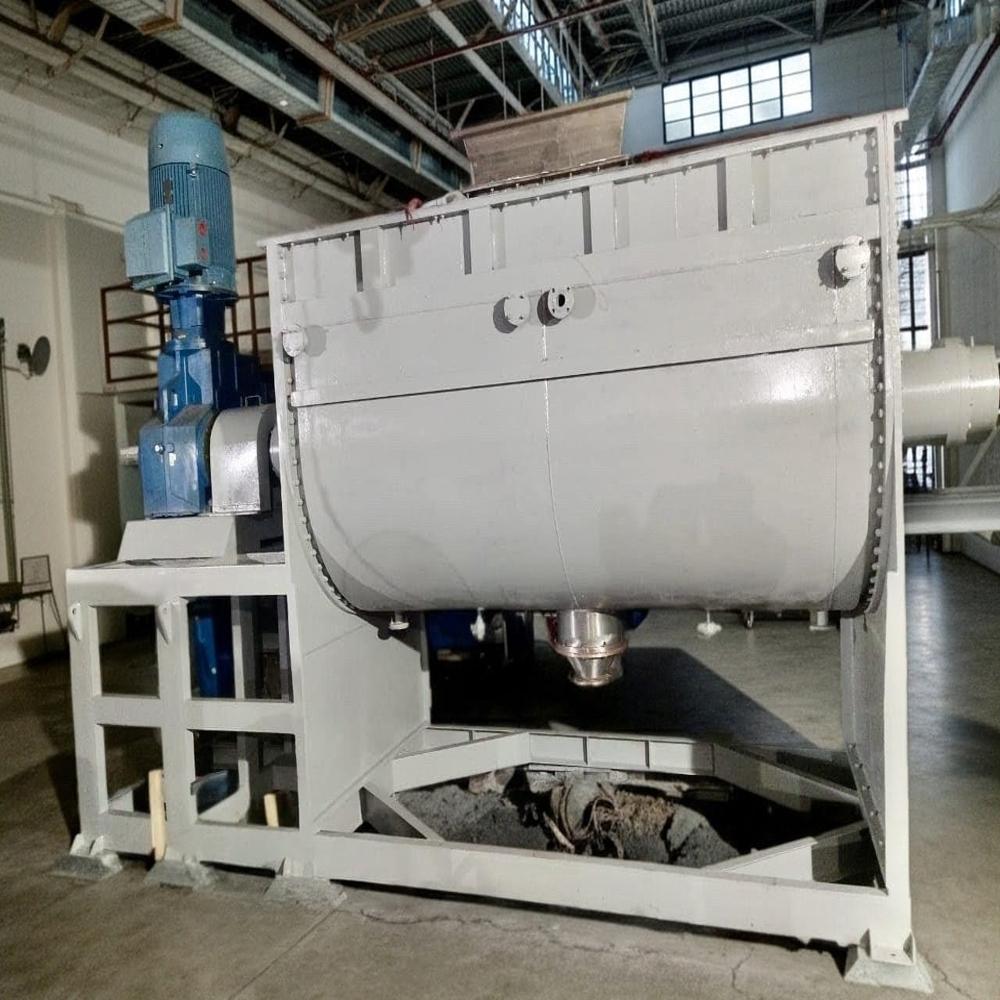

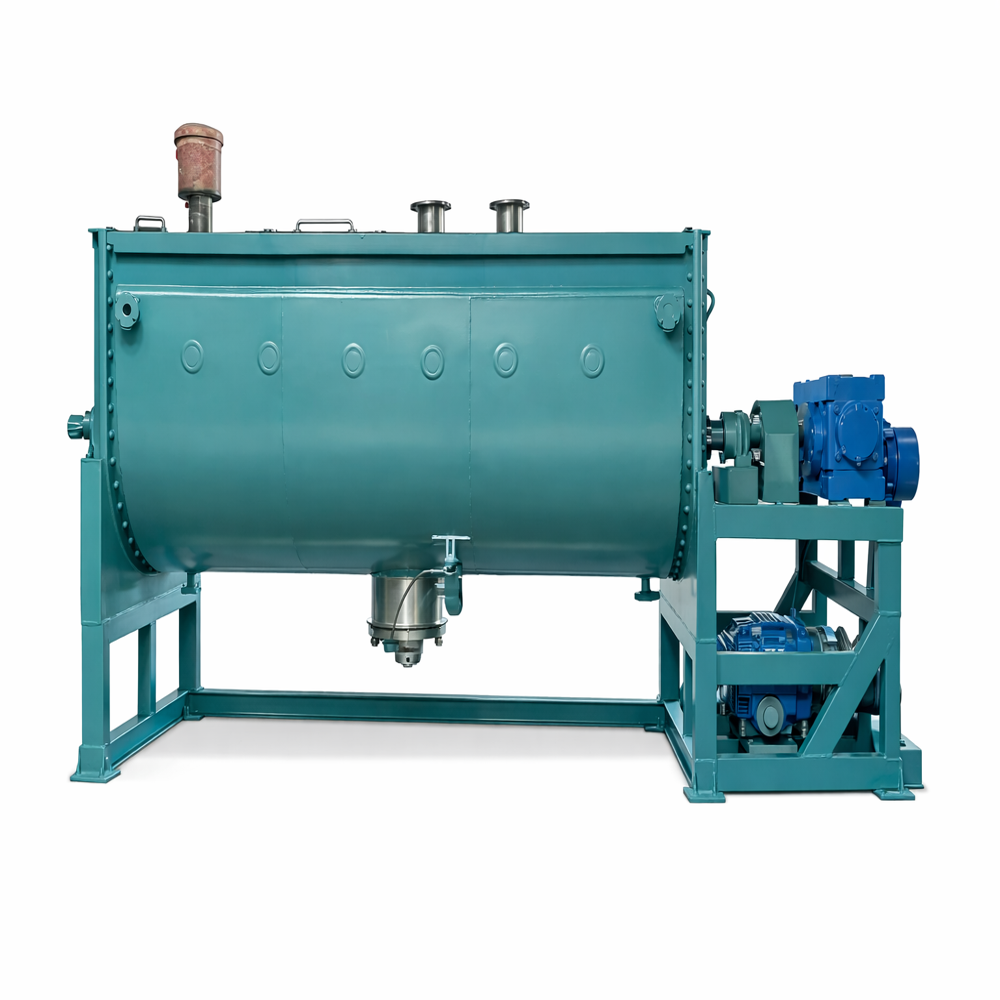

About Industrial Ribbon Mixer

The Industrial Ribbon Mixer is used to mix large amounts of material in many different industries. The blender gets its name from the thin, ribbon-shaped metal mixers that perform the blending. It is usually used when one of the items being mixed has a lot of particles, and its important that all of the ingredients are mixed evenly. The mixer is made for use in the various industries and commercial applications. The Industrial Ribbon Mixer is very useful and highly durable.

Efficient Mixing Performance

The ribbon mixer features a double helical ribbon blade design that guarantees a thorough and uniform blend of powders, granules, and other materials. Suitable for batch sizes up to 500 kg, it addresses industrial needs for reliable and fast mixing, delivering homogeneity within 10-15 minutes per batch. Its robust gearbox drive and 10 HP motor further enhance its efficiency and productivity.

User-Friendly Operation and Maintenance

Operation is straightforward with a standard on/off switch control panel, while safety is ensured through features like the emergency stop button and overload protection. Side access doors permit easy manual cleaning and inspection. Manual grease points ease maintenance while the powder-coated surface provides lasting protection against wear.

Versatile and Durable Construction

Constructed primarily from mild steel, with optional SS304 product contact parts and liner, the mixer offers flexibility for various hygienic requirements. The tanks U-shape and double lip seal provide both structural integrity and operational reliability. Its floor-mounted, fixed position design ensures stability during high-capacity mixing tasks, making it suitable for demanding industrial environments.

FAQs of Industrial Ribbon Mixer:

Q: How does the bottom discharge with manual valve work on this ribbon mixer?

A: The bottom discharge with manual valve allows for simple and efficient emptying of mixed products. Once the batch mixing is complete, the operator can manually open the valve at the bottom of the tank, permitting easy and controlled discharge of the material into collection containers.

Q: What materials are suitable for mixing in this industrial ribbon mixer?

A: This mixer is ideal for blending powders, granules, and other free-flowing solids commonly found in the food, chemical, and pharmaceutical industries. Optional SS304 contact parts make it suitable for materials requiring higher hygiene standards.

Q: When is it recommended to opt for SS304 liner and contact parts?

A: SS304 liner and contact parts are recommended when processing food-grade or highly reactive products that require corrosion resistance and easy cleaning, ensuring compliance with strict industry hygiene standards.

Q: Where should the industrial ribbon mixer be installed?

A: The mixer is designed for indoor installation on a solid, level floor. Its fixed, floor-mounted design ensures stability and safe operation during mixing cycles, ideally within a controlled factory or production facility environment.

Q: What is the process for cleaning the mixer after a batch is completed?

A: Cleaning is conducted manually through the side access door. The interior, including blades and tank walls, should be wiped or washed down according to the type of material processed. Regular cleaning prevents cross-contamination and maintains hygiene.

Q: How do the safety features protect the operator during usage?

A: Safety features such as the emergency stop and overload protection immediately halt operations if unsafe conditions arise, reducing the risk of accidents or equipment damage during mixing operations.

Q: What benefits does this ribbon mixer offer compared to conventional mixers?

A: Key benefits include fast and homogeneous mixing, energy efficiency, low noise operation, simple maintenance, and versatility for a range of industrial applications. The robust design and safety enhancements ensure long-term, reliable performance.
