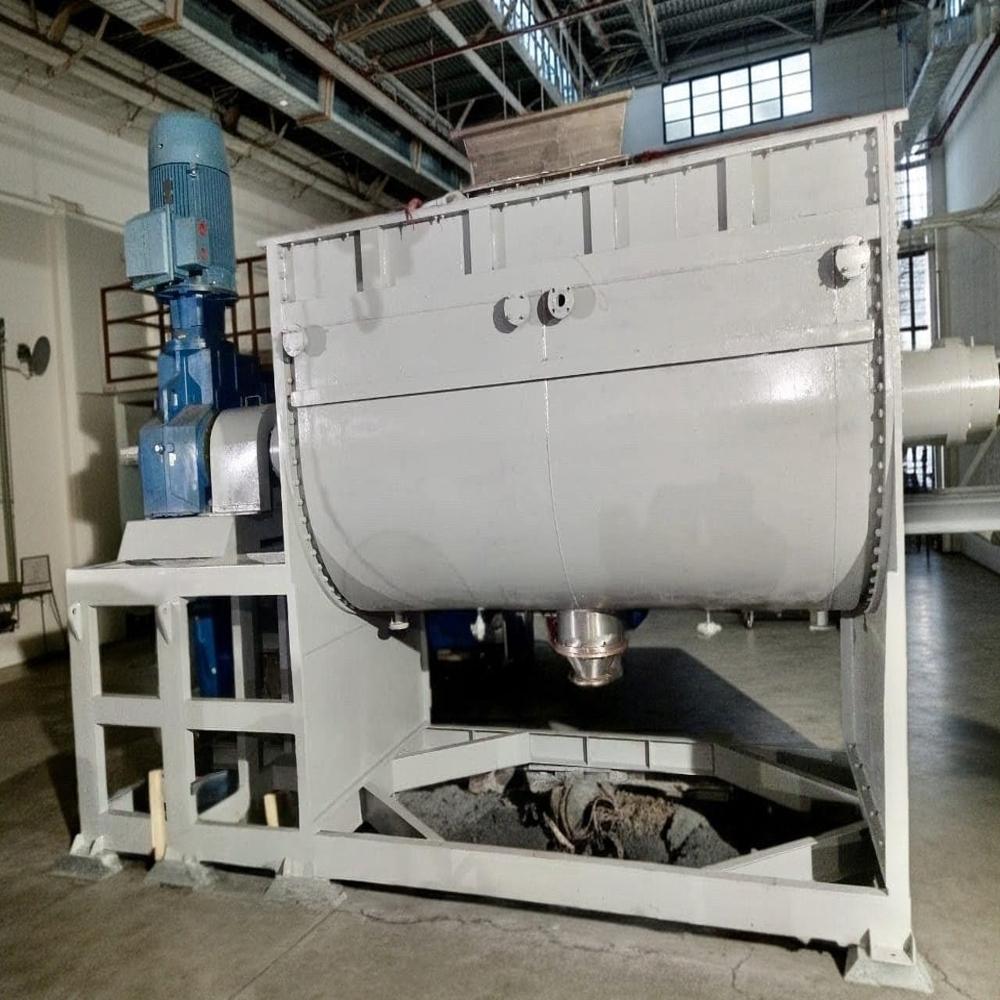

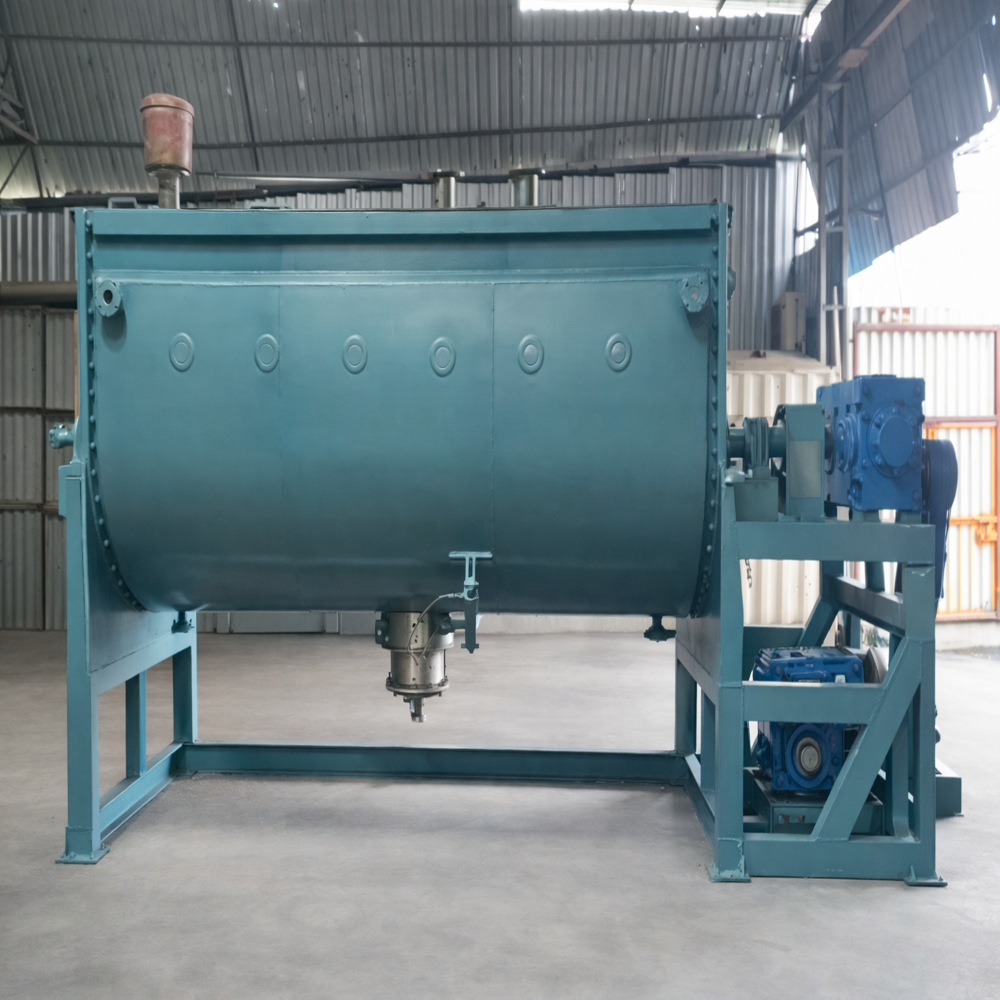

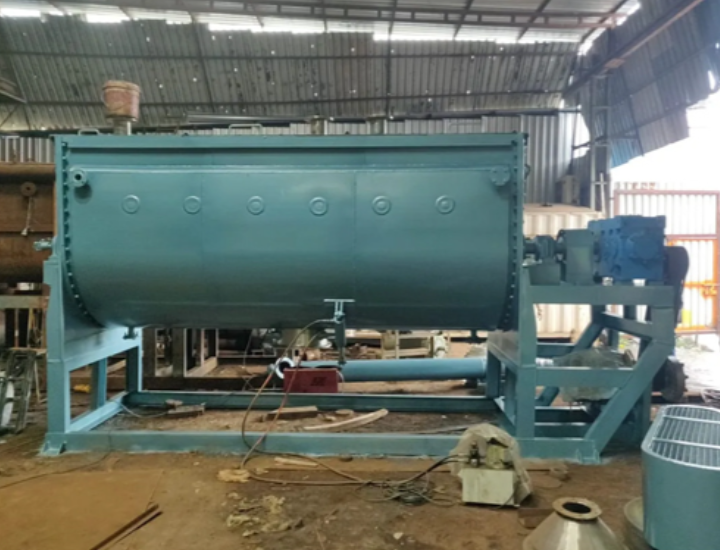

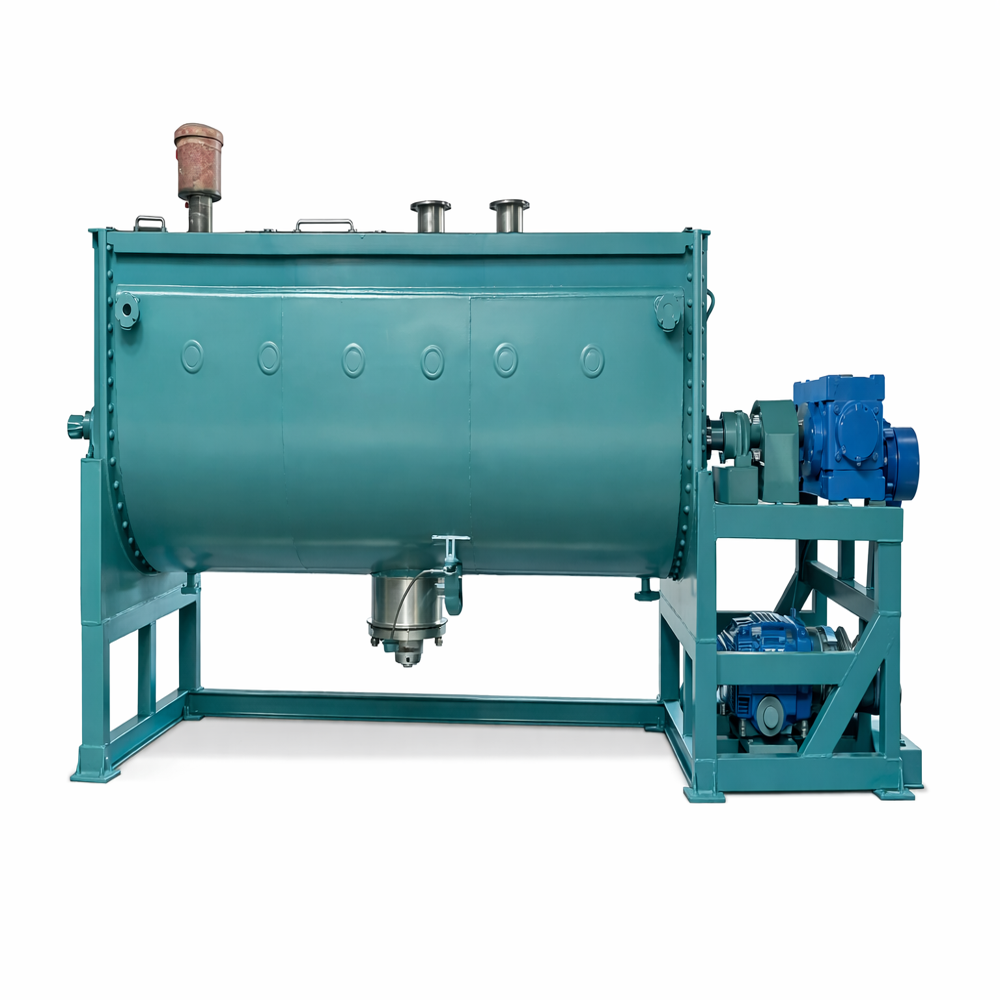

Ribbon Mixer

Name: Ribbon Mixer
Brand: AAS PROCESS EQUIPMENTS PVT LTD.
Price: 300000.0 INR
Availability: InStock

Price 300000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Ribbon Mixer Specification

Motor Power
5 HP

Surface Finish
Polished

Voltage
220/380 V

Orientation
Horizontal

Application
Powder Mixing, Food, Chemical, Pharmaceutical Industries

Mixing Speed
36 rpm

Features
Easy to Operate, Uniform Mixing, Durable Build

Frequency
50/60 Hz

Drive Type
Gear Drive

Blade Type
Double Helical Ribbon

Noise Level
Low

Type
Ribbon Mixer

Material
Stainless Steel

Capacity
500 kg/batch

Computerized
No

Automatic Grade
Semi-Automatic

Power(W)
3 kW

Shape of Tank
U-Shaped

Loading Capacity
350-500 kg

Mixer Type
Horizontal Ribbon Mixer

Size
Standard / Customized

Width
Approx. 600 mm

Dimension (L*W*H)
Approx. 2100 x 900 x 1250 mm

Weight (kg)
700 kg

Color
Silver / Metallic

Design Code
GMP/Customized as per Requirement

Discharge Method
Bottom Discharge with Manual/Automatic Valve

Safety Features
Overload Protection, Safety Interlock

Bearing Type
Heavy Duty Ball Bearing

Drive Motor Brand
Standard (Siemens/Equivalent)

Hopper Opening
Large Top Opening for Easy Loading

Sealing Method
Gasket Sealing to Prevent Leakage

Operating Temperature
Up to 50C

Cleaning System
Manhole for Cleaning & Inspection

Temperature Range
Ambient

Operation Mode
Batch Mode

Product Code
RBM-500

Control Panel
Optional with Start/Stop Switch & Timer

Ribbon Mixer Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
4 Units Per Month

Delivery Time
15 Days

About Ribbon Mixer

Attaining specialization in this field, we are manufacturing and supplying fine quality Ribbon Mixer which is made by using good quality required materials with the help of advanced technology. It is used to wet stage blending and mixing of mass medications, synthetic compounds and restorative powder. This item is reasonable for dry blending of free-streaming powders and mixing huge volumes of dry solids. The delivery of this Ribbon Mixer is done by us at fixed price.

Robust and Efficient Batch Mixing

The RBM-500 Ribbon Mixer offers superior batch mixing performance for up to 500 kg of powder per batch. With its horizontal U-shaped tank, double helical ribbon blades, and gear drive, the mixer delivers uniform results every cycle. A powerful, reliable motor ensures consistent operation, making it suitable for industrial production environments.

Easy Operation and Maintenance

This mixer is designed for user-friendly operation, featuring a large top hopper for convenient loading and a bottom discharge valve for simple unloading. The inclusion of a manhole allows straightforward inspection and cleaning, supporting GMP compliance and reducing downtime for maintenance.

Enhanced Safety and Reliability

Safety is prioritized through overload protection, safety interlocks, and a well-sealed construction to prevent leakage. The mixers robust build, durable bearings, and polished surface finish provide lasting reliability, while noise levels remain low in operation, contributing to a comfortable working environment.

FAQs of Ribbon Mixer:

Q: How does the bottom discharge system with manual or automatic valve operate in the RBM-500 Ribbon Mixer?

A: The bottom discharge system enables rapid and controlled emptying of mixed materials. Operators can choose between a manual or automatic valve, depending on process requirements. The discharge mechanism is designed to minimize product residue and enhance efficiency during batch unloading.

Q: What are the main benefits of the gasket sealing method on this ribbon mixer?

A: Gasket sealing in the RBM-500 helps prevent material leakage during mixing, maintaining product integrity and workplace cleanliness. This feature is crucial for applications in food, pharmaceutical, and chemical industries where cross-contamination and loss of material must be avoided.

Q: When should the manhole be used for cleaning and inspection?

A: The manhole should be accessed during routine maintenance, batch changes, or anytime internal inspection and cleaning are necessary. Its conveniently located access point simplifies these tasks and supports easy compliance with GMP and hygiene standards.

Q: Where is the RBM-500 best suited for installation and use?

A: The RBM-500 is ideal for floor-mounted operation in industrial production facilities such as food processing plants, chemical manufacturers, and pharmaceutical companies. Its compact footprint fits well in batching rooms and dedicated mixing zones.

Q: What process advantages does the double helical ribbon design provide?

A: The double helical ribbons create a counterflow mixing action, ensuring thorough blending of powders across the U-shaped tank. This design delivers consistently uniform mixing results, reducing processing time and improving batch quality.

Q: How does the overload protection and safety interlock system work?

A: Overload protection automatically interrupts mixer operation in the event of excessive load, protecting the motor and drive system from damage. Safety interlocks prevent the mixer from operating when the hopper or inspection manhole is open, enhancing operator safety.

Q: What are the usage and capacity specifications of the RBM-500?

A: The RBM-500 is designed for batch processing with a loading capacity of 350500 kg per batch. It can handle a variety of powders under ambient conditions up to 50C. The mixer operates at 36 rpm with a 5 HP motor, making it suitable for medium to large-scale powder mixing tasks.
